진동시험기

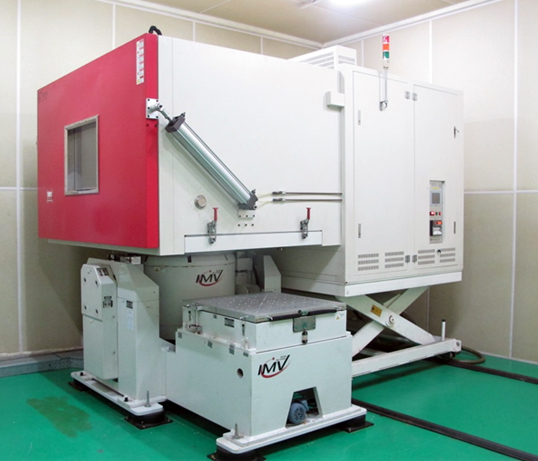

복합환경 전기식 진동시험기
Specification
- Testing System
-
- Sine Force Peak : 54 kN
- Shock Force : 108 kN
- Max. Acceleration sine peak : 100 g
- Frequency Range : DC ~ 2,600 Hz
- Velocity Sine Peak : 2.2 m/s
- Shaker
-
- Armature Resonance Frequency : 2,200 Hz
- Allowable Eccentric Moment : 1,550 N∙m
- Horizontal Table Size : 800 x 800 mm
- Max. payload : 640kg
- Controller : 4 Channels
-
- 3D Analysis, Time History Display
- 24-bit A/D converter resolution, 51.2 kHz Sample Rate
- Chamber
-
- 3D Analysis, Time History Display
- 24-bit A/D converter resolution, 51.2 kHz Sample Rate
